ALBA-GR

Made specifically for use with Shimano 2X "GRX" and the SRAM 2X "WIDE" front derailleurs.

BUY

ALBA-GR

ALBA-GR

$180.00

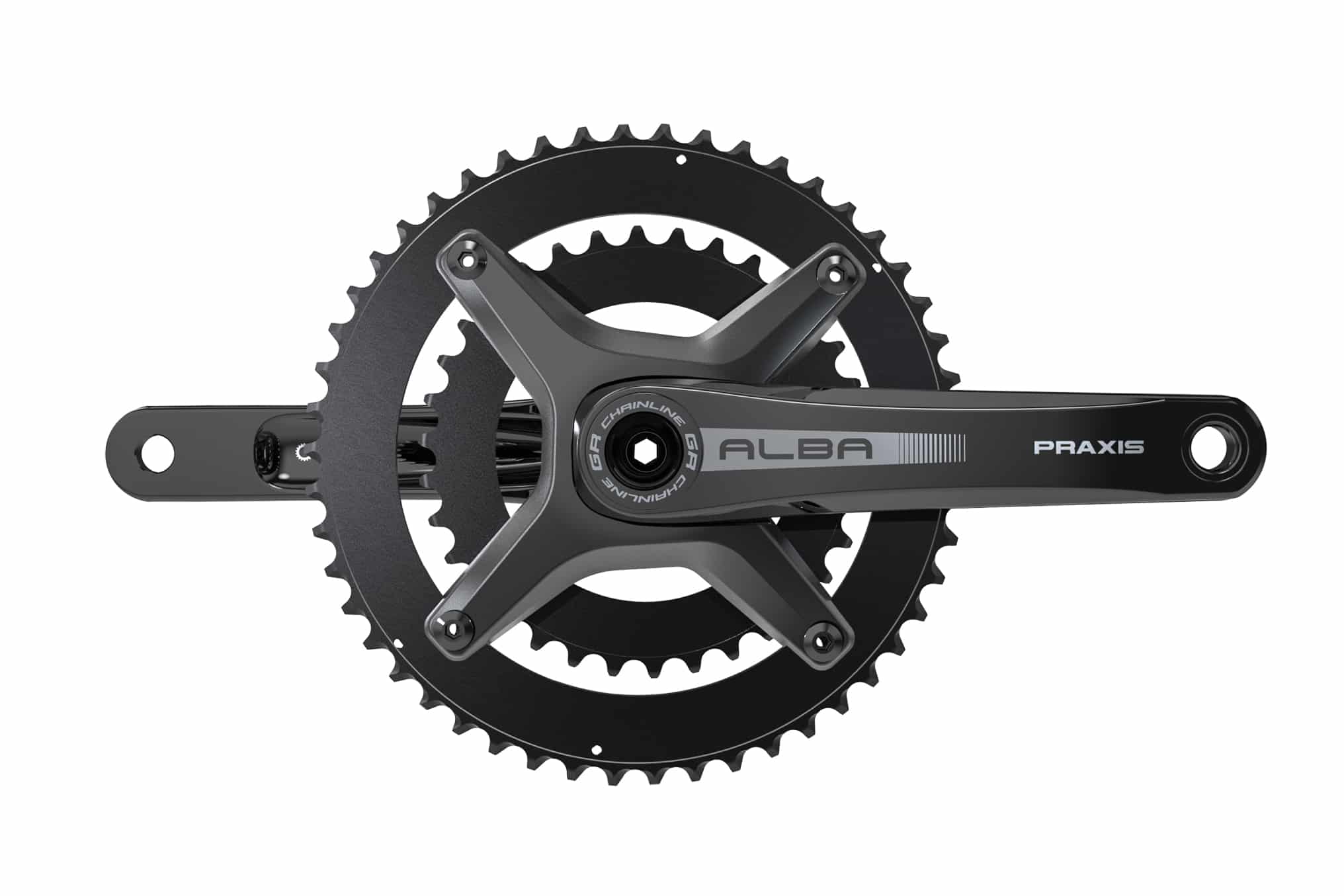

Our Sport level alloy gravel crank. The ALBA-GR is specific for use with Shimano "GRX" 2X and the SRAM "WIDE" front derailleurs.

SKU: N/A Categories: ,
SPECIFICATIONS
INSTRUCTIONS ⚠️ VIEW MANUAL HERE
CRANKForged alloy crankset specifically for Gravel 2X wider chainline and Front Derailleurs. See dropdown menu for offered options
BUY THIS IF : You want a performance alloy road crank that is 10/11/12sp compatible with 2X Shimano GRX or the 2X SRAM Wide" gravel groups.
MATERIALForged Alloy | Alloy Spider & Rings | Alloy M30 spindle (30mm/28mm)
GEARING48/32 | Simplified Version of LevaTime II X-RINGS | w/Steel chainring bolts
CHAIN✅ 10/11/12sp
KMC
SHIMANO
SRAM - All regular or "Flat-Top"

*12sp MARKING* See picture above showing new "10/11/12sp" marking for these updated sets. NOTE: Older sets without this marking ARE NOT 12sp.
WEIGHT800g +/- : 172.5 with 48/32
CHAINLINE2X = 47mm GRAVEL : Specifically for use with Shimano 2X "GRX" and SRAM 2X "WIDE" front derailleurs.
1X = 48mm GRAVEL : If you install a DM1X Road/Gravel ring
Q-FACTOR150mm
DRIVETRAINSHIMANO "GRX" 2X GRAVEL - Compatible with both Di2 and mechanical Shimano 10/11/12sp.
SRAM "WIDE" 2X GRAVEL - Compatible with both e-Tap and mechanical SRAM 10/11/12sp.
Made specificaly for use with Shimano 2X "GRX" and the SRAM 2X "WIDE" front deraileur gravel groups.
B.B.
This crank requires our Praxis M30 BB
M30 = 30mm Drive Bearing / 28mm NonDrive Bearing
Offered in BSA / BB86 / T47 I.B / T47 E.B / BB30 / PF30 / 386EVO / BBRight
M30 BB FAMILY HERE
MAIN BOLT8mm Alloy Main crank bolt for Install/Self-Extract
TECHNOLOGYCold Forged Ring Manufacturing
LevaTime II Shifting
POWER
OPTIONS		Aftermarket Road Power Meters for this crank :
Power2Max – NG and the NG Eco 3-Bolt Power Meter
SRM – 3-Bolt Power Meter
GARMIN - Power Pedals
LOOK – Power Pedals
Favero– Power Pedals
Velocomp – Power Pod
GR CRANK Q.CL

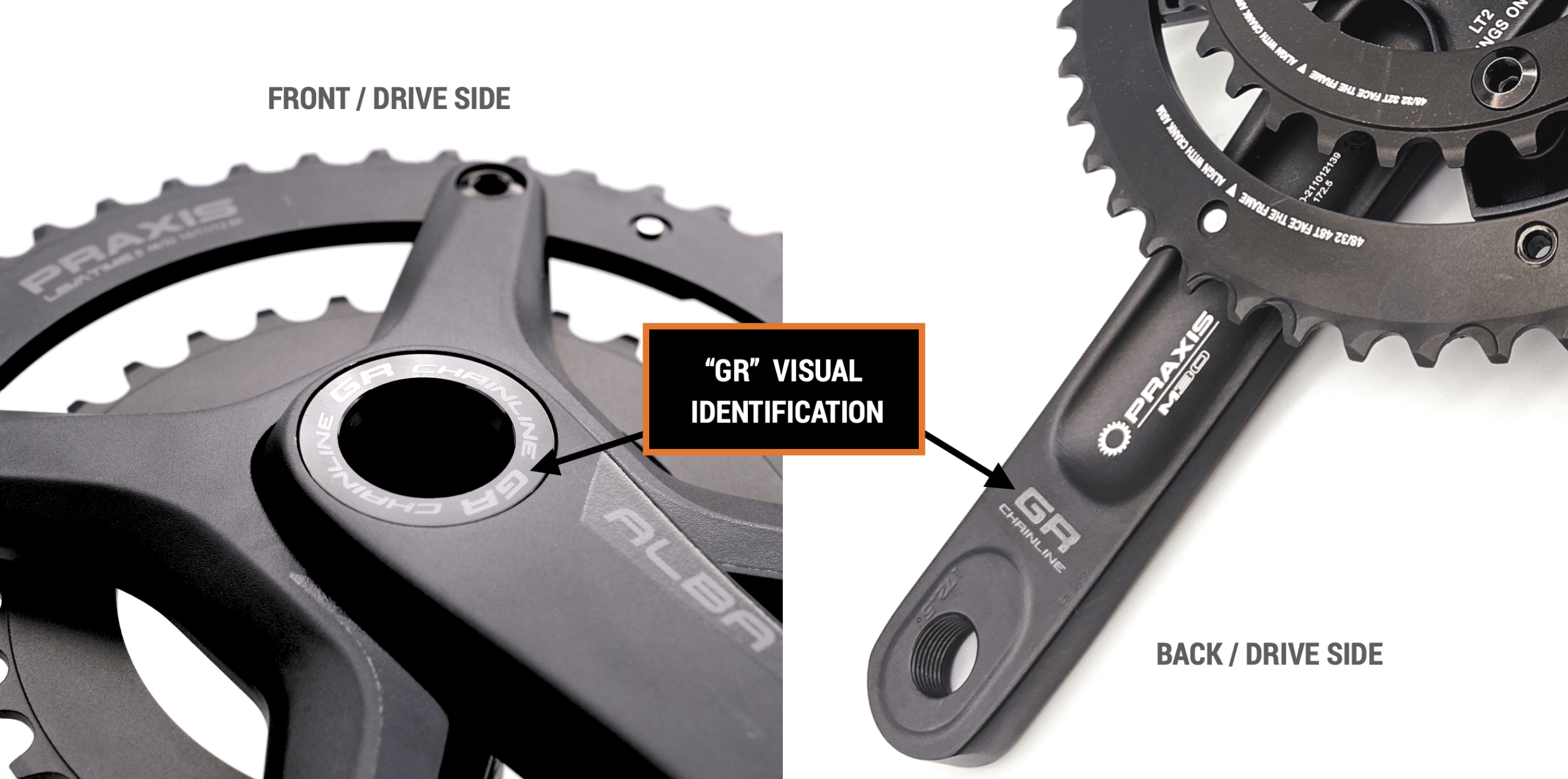

ALBA GR IDENTIFY

OTHER PARTS YOU MIGHT NEED!

TOP FAQ

How do I know which BB I need?
I want to set this up as a 1x. Can I buy the crank arms separately?
I have a gravel bike but I don’t use a GRX or SRAM Wide front derailleur. Can I still use the GR crank?

3-BOLT
DIRECT MOUNT
INTERFACE

WARRANTY

Praxis warrants components to be free from defects in materials or workmanship for a period of 2 years after original purchase to the original owner.

However, there are limitations such as normal wear and tear…as “nothing lasts forever” so please read our full Warranty Here

SHIPPING

USA orders placed after 12:00pm M-F are shipped the next business day. Any orders placed over a weekend or holiday will be processed and shipped the next business day.

30 DAY / RETURNS – At Praxis, we are a core group of riders that believe you should be completely satisfied with the purchase you have made. Should an item purchased through the Praxis Online Store fail to meet your expectations, we will gladly accept its return within 30 days of original purchase date.
