EC-TYPE4

Price range: $85.00 through $280.00

These eCranks sets are *NARROW FIT* for Road/Gravel eBikes with :

- TQ-HPR50 & HPR60
- Brose Mag Family
- Fazua-R50
- Giant E+ System BBSS

(These will not fit on MTN bikes)

SKU: N/A Categories: CRANKS, E-CRANKS

ARM

LENGTH

Clear

SPECIFICATIONS
INTRUCTIONS	⚠️ VIEW MANUAL HERE
E-CRANK	E-CRANKS that are Road/Gravel for Brose, Fazua-R50, TQ or motor
BUY THIS IF :	You have an Road/Gravel/Urban eBike with either a Brose Mag family, Fazua R50 or TQ-HPR50/60 motor or Giant E+ BBSS
MOTOR	TQ-HPR50/HPR60 -With steel ISIS spline spindle BROSE Mag Family-With steel ISIS spline spindle FAZUA-R50 -With steel ISIS spline spindle Giant E+ System BBSS (HubMotorBike)

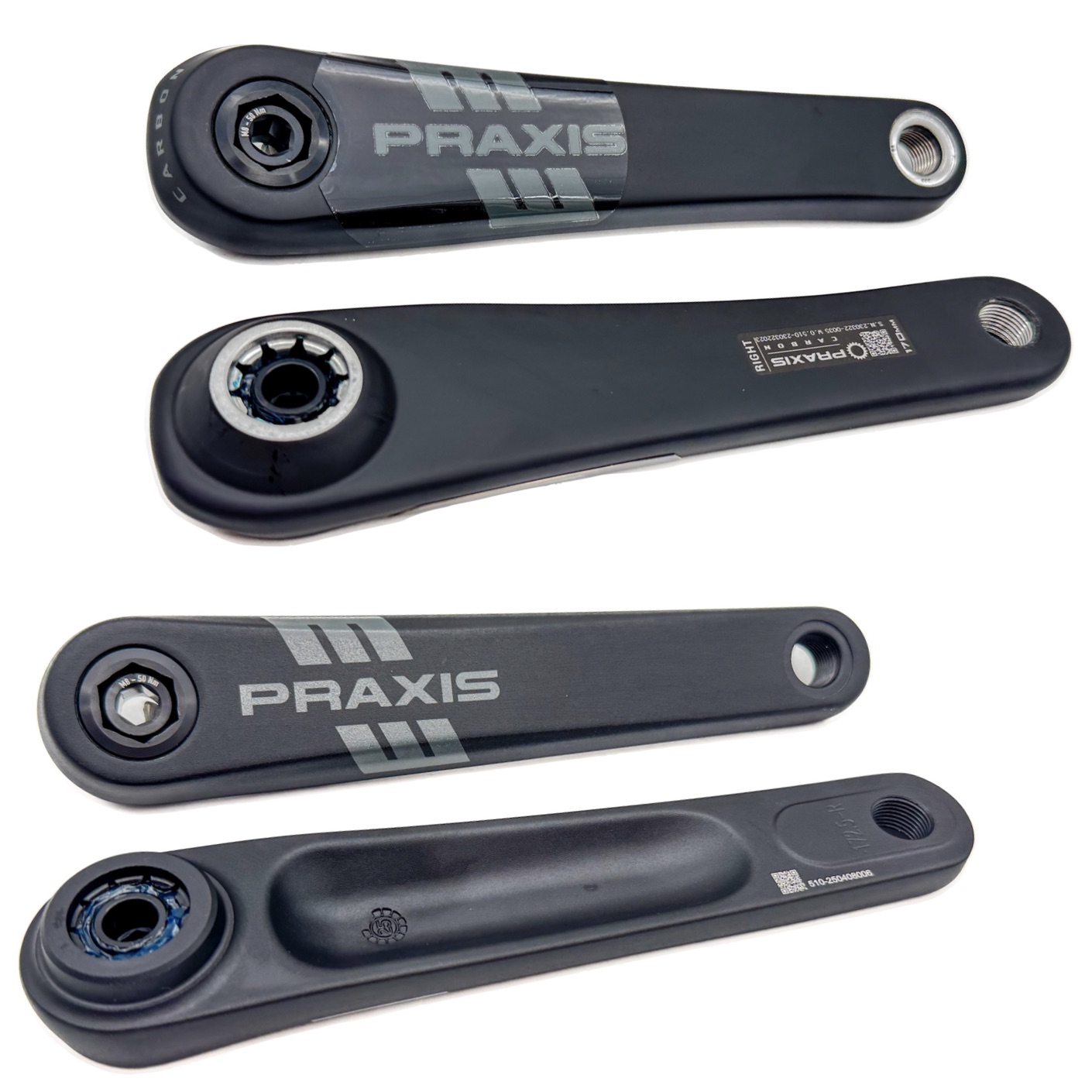

MATERIAL	Left & Right arm set \| Carbon Fiber or Forged Alloy
AVG. WEIGHT	514g - 172.5 Alloy 385g - 172.5 Carbon
Q-Factor	These are the Qfactors when you install this crank on these motors : Q = 178mm : "Road/Narrow" installed on Brose Mag motor Q = 163mm : "Road/Narrow" installed on FazuaR50 motor Q = 163mm : "Road/Narrow" installed on TQ-HPR50/60 motor
MAIN BOLT	8mm AL main crank bolt for Install/Self-Extract \| 50Nm torque Our eCranks with ISIS Spline use our replaceable M24 alloy Main bolt/Self extractor
TECH	C.R.A.F.T. Cabon Mfg.
VIP NOTE	NARROW ARM - These arms are narrower fitment and for Road/Gravel/Urban eBike use. These will not fit eMTN VIP – Do NOT order this crank if you own a Specialized Levo/Kenevo/Vomo/Vado. If you have a Specialized e-bike with steel ISIS spline spindle then GO HERE.
