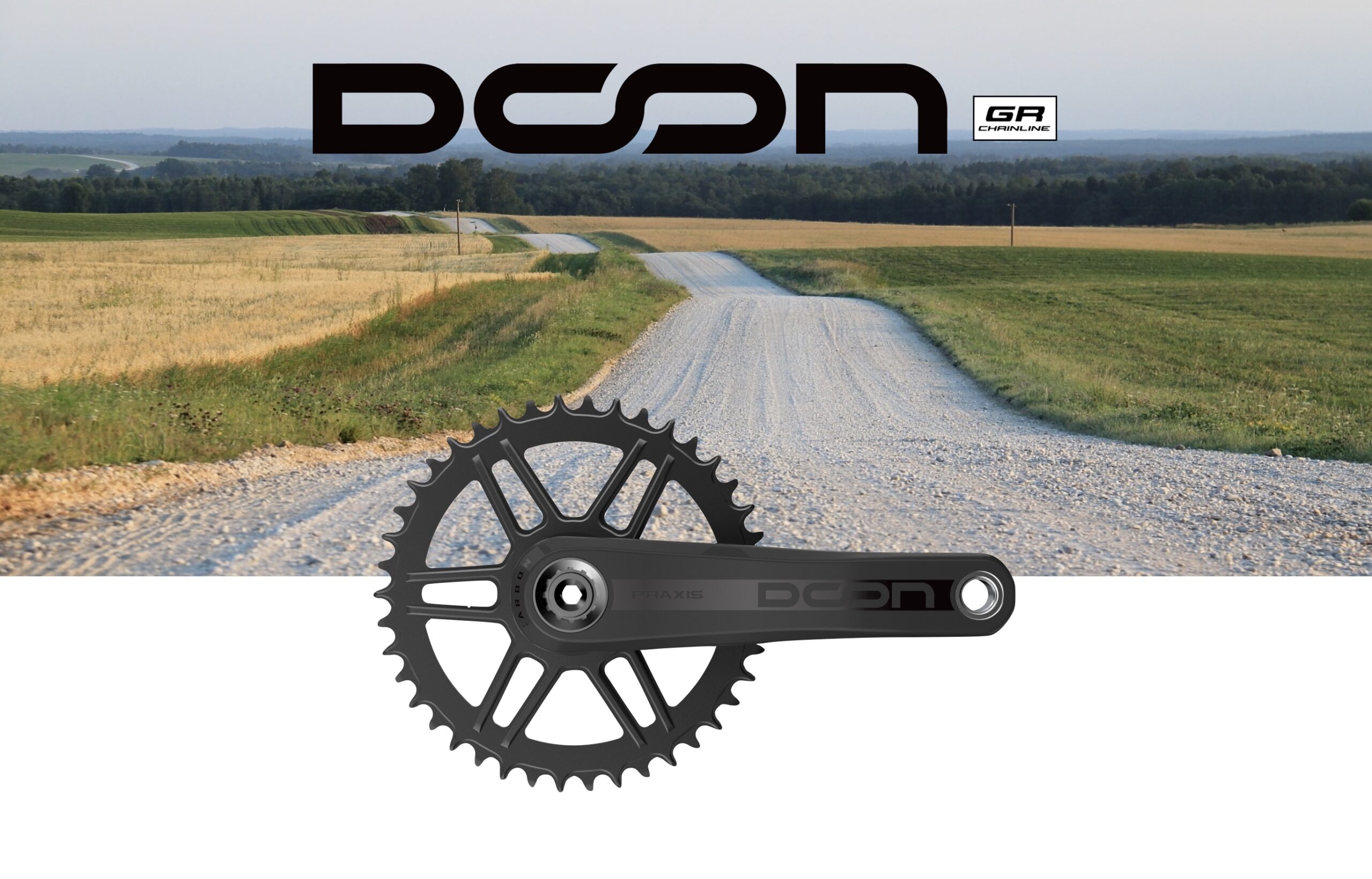

GR - For Gravel
Made for the wider gravel chainline groups such as Shimano GRX and SRAM "Wide"
SUPERLIGHT
342g Pro Gravel arm set to build as you please.
M30-THRU
The M30-THRU spindle allows tunable preload for our M30-THRU BB or any brand's 30mm/30 BB
OTHER PARTS YOU MIGHT NEED!
| SPECIFICATIONS | |
|---|---|
| CRANK | Full carbon Arm set. |
| BUY THIS IF : | You want our lightest weight professional level carbon Gravel crank for use with Shimano GRX or SRAM "Wide" gravel groups. |
| MATERIAL | Carbon Arms | Aluminum Spider & Rings | Alloy M30-THRU spindle (30mm/30mm) |
| CHAIN | ✅ 10/11/12sp KMC SHIMANO SRAM - All regular or "Flat-Top" ![]() |
| WEIGHT | 342g : 172.5 Armset as reference |
| CHAINLINE | 1X = 48mm GRAVEL : Install a Praxis DM1X ring 2X = 47mm GRAVEL : Install a Praxis 2X LT2 Kit |
| Q-Factor | 150mm |
| DRIVETRAIN | SHIMANO- Compatible with both Di2 and mechanical Shimano GRX 10-12sp drivetrains.
SRAM- Compatible with both e-Tap and mechanical SRAM "Wide" 10-12sp drivetrains. |

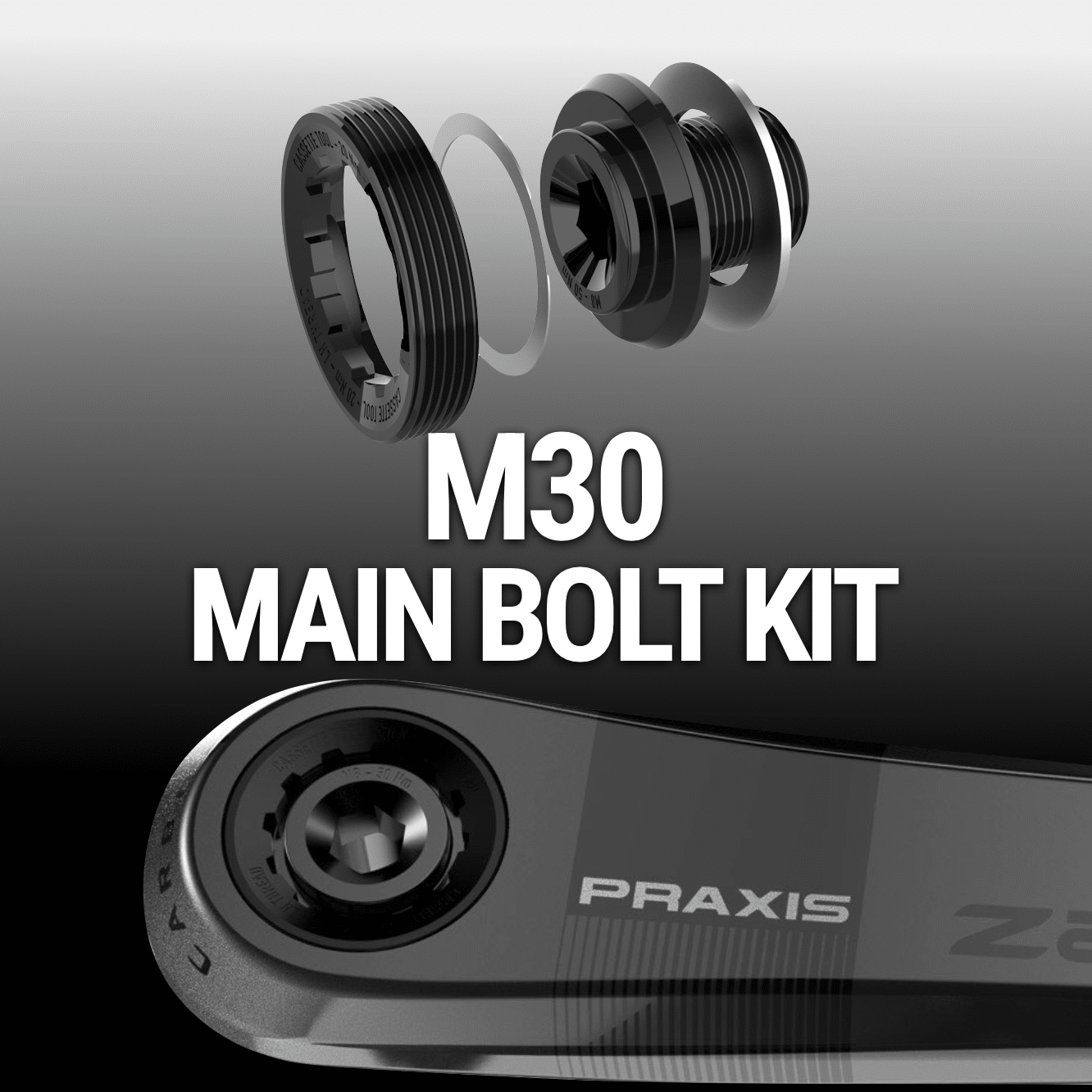

| MAIN BOLT | M30 BOLT - 8mm Alloy Main crank bolt for Install/Self-Extract |

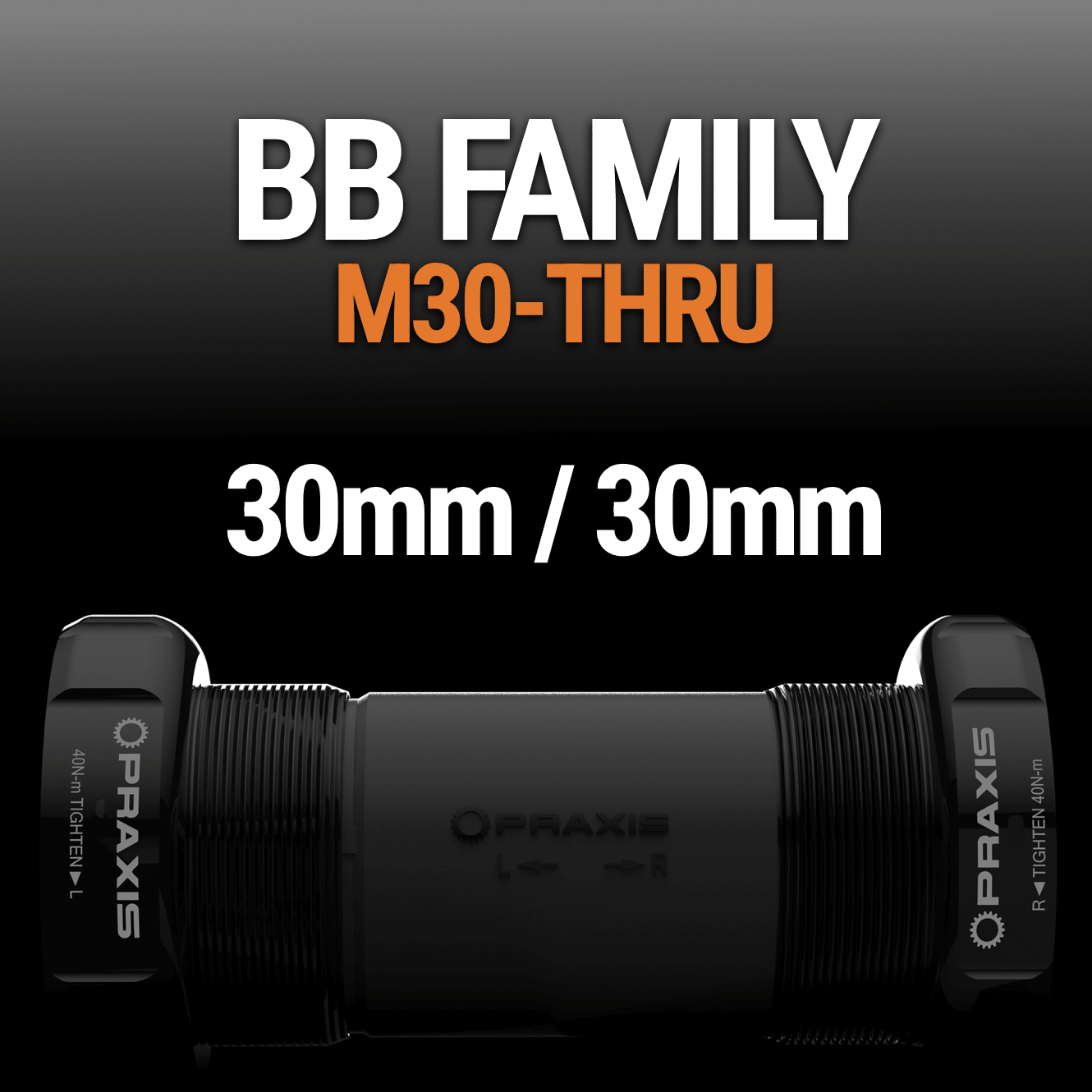

| BB | This crank uses our M30-THRU BB FAMILY HERE M30-THRU = 30mm Drive Bearing / 30mm NonDrive Bearing Offered in BSA / BB86 / T47 I.B / T47 E.B / BB30 / PF30 / 386EVO / BBRight |
| TECH | C.R.A.F.T. Cabon Mfg.
Cold Forged Ring Mfg. LevaTime II Shifting |
| AFT POWER OPTIONS | Compatible Road Power Meters for this crank :
Power2Max – NG and the NG Eco 3-Bolt Power Meter SRM – 3-Bolt Power Meter SIGEY – 3-Bolt Power Meter XCADEY – 3-Bolt Power Meter GARMIN - Power Pedals LOOK – Power Pedals Favero– Power Pedals Velocomp – Power Pod |
